EOS 850

Description

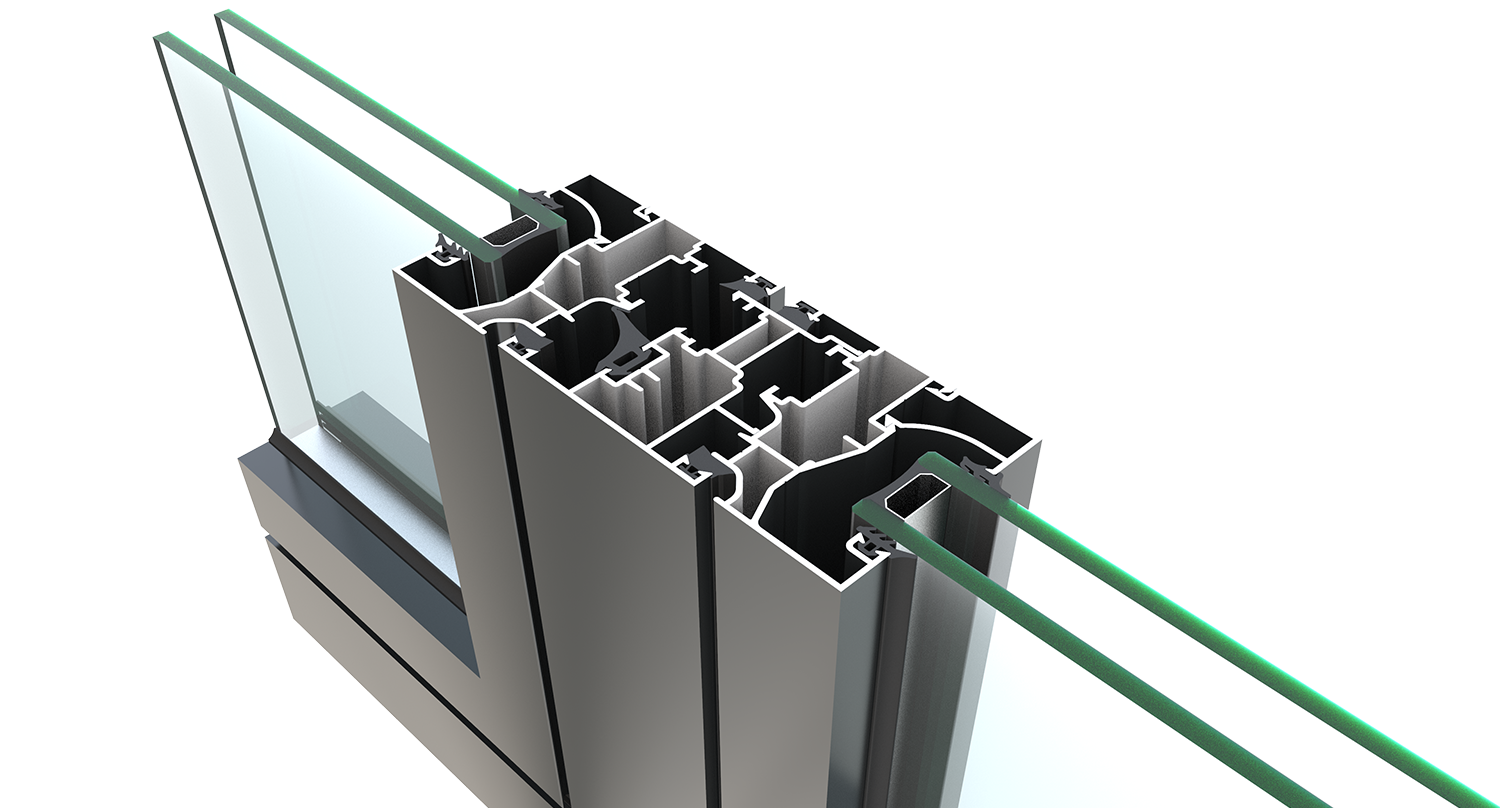

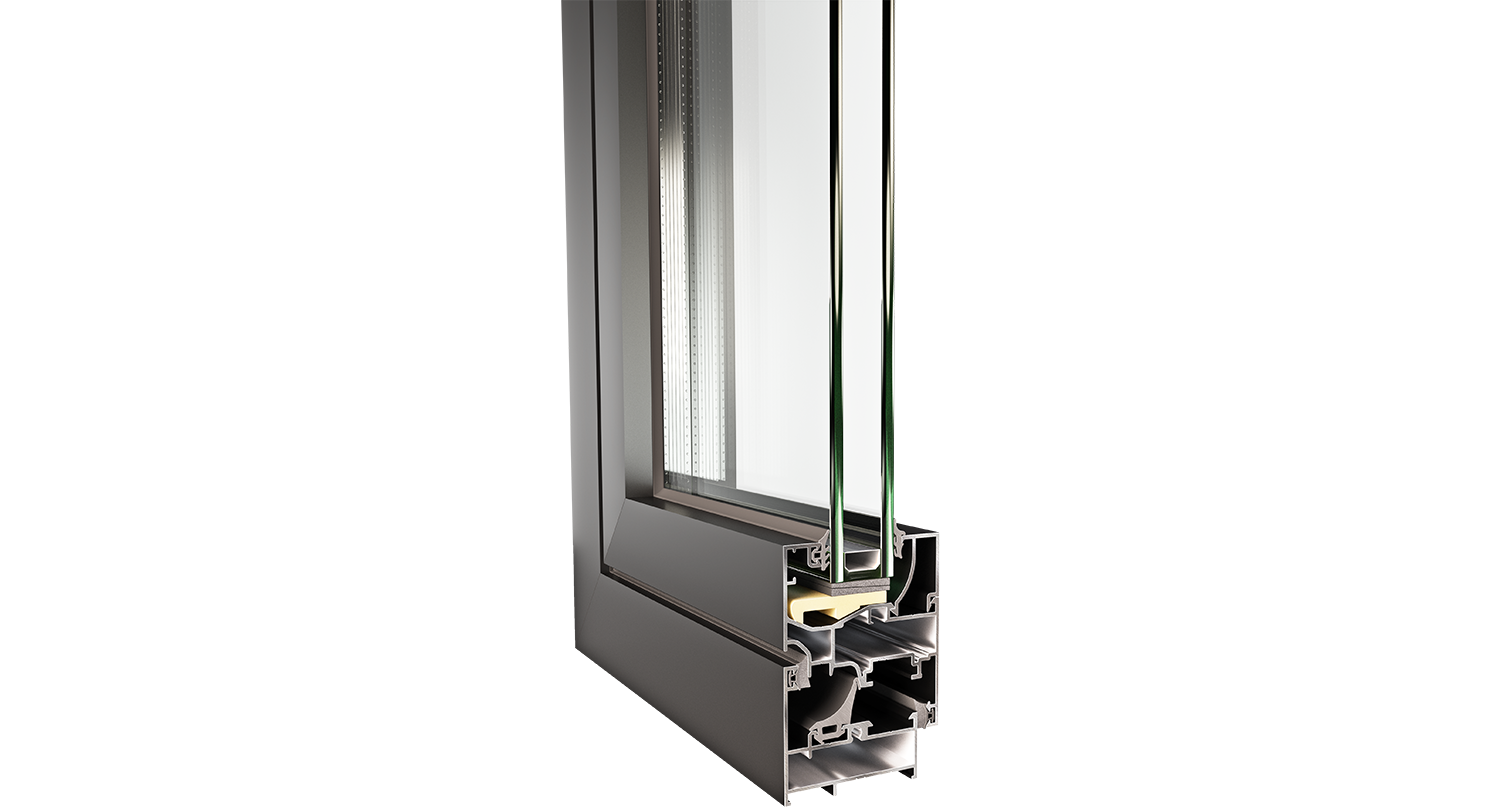

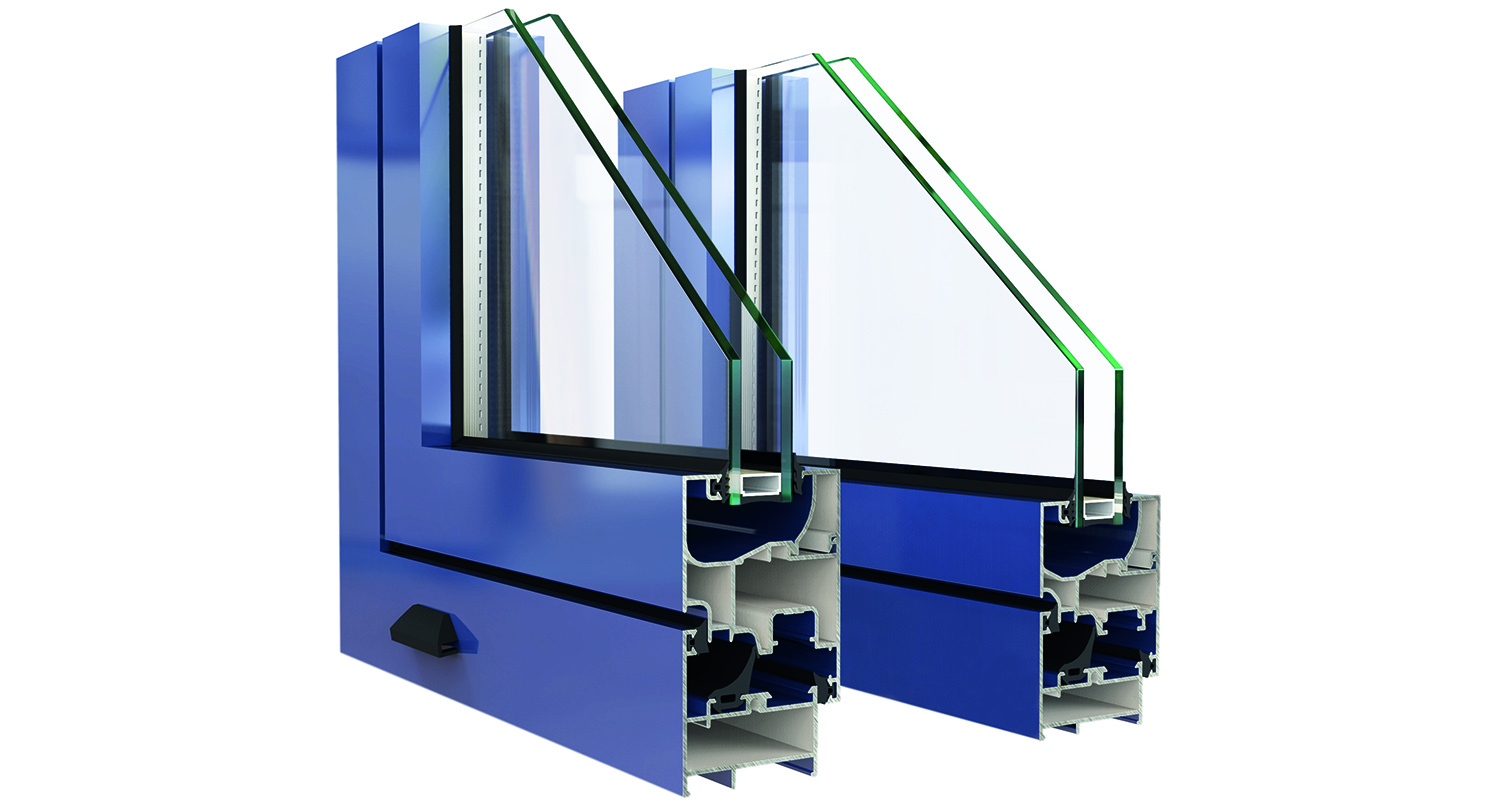

The EUROPA 850 series represents an innovative and economical opening frame system characterized by its minimalist design featuring clean, straight lines. This system is available in two sash sizes—small and large—and includes an adjoining profile with a frame depth of 23mm, specifically engineered to accommodate the Camera Europea mechanism. Additionally, a variant with a 29mm frame is designed to integrate seamlessly with the Multi-locking mechanism. The system supports both single glazing of 5mm and double glazing up to 37mm, providing flexibility in glass options. Door sashes can be equipped with either a standard locking mechanism or a multi-locking mechanism, enhancing security. The sealing efficiency of the EUROPA 850 is achieved through three series of gaskets, ensuring optimal performance. Notably, the EUROPA 850 series shares a cohesive aesthetic with the EUROPA 800 series, allowing for harmonious integration in architectural designs.

Technical Data Summary

• Opening System: Certified for air permeability, water tightness, and wind resistance.

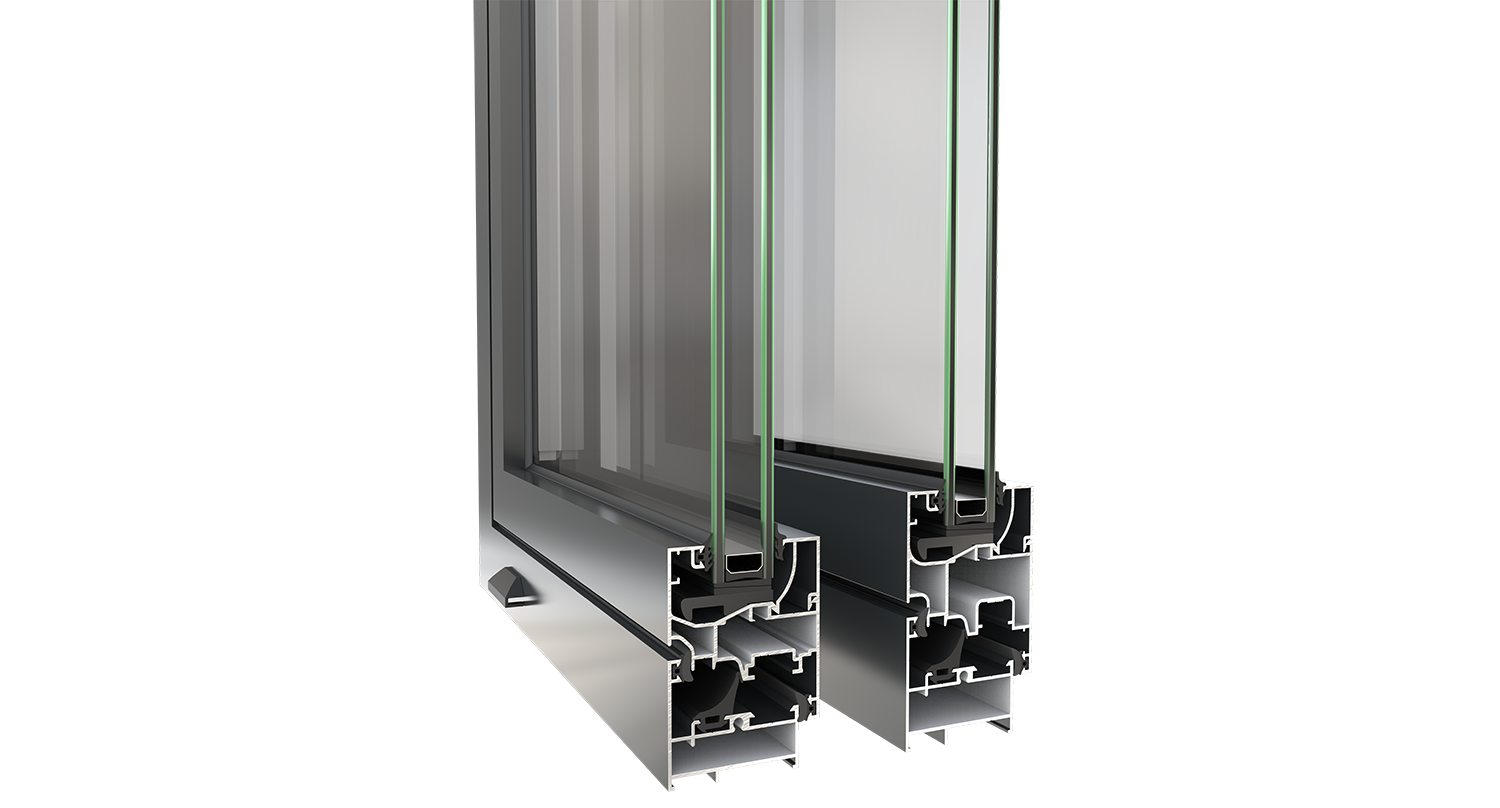

• Sash Sizes: Available in small and large dimensions.

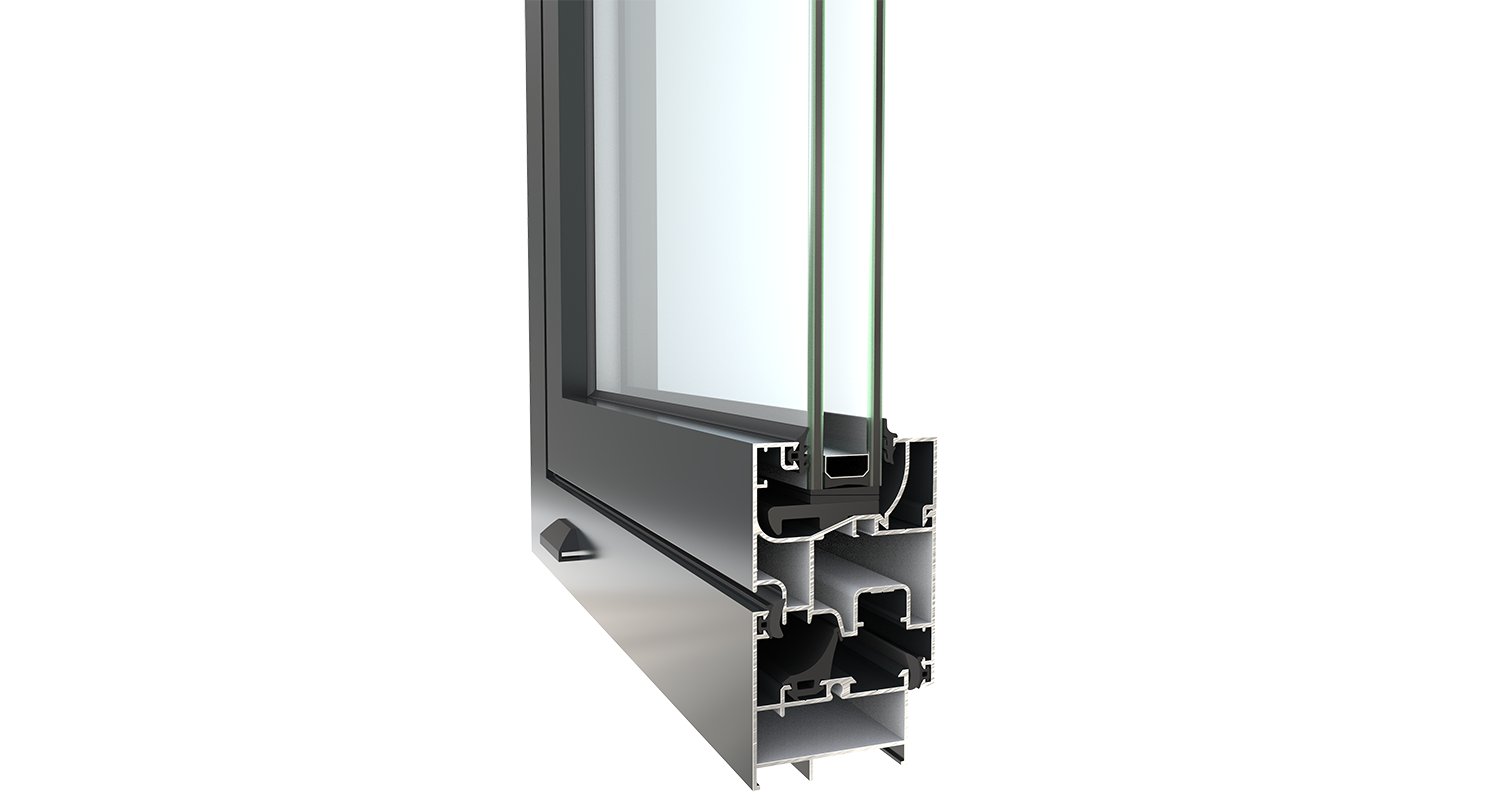

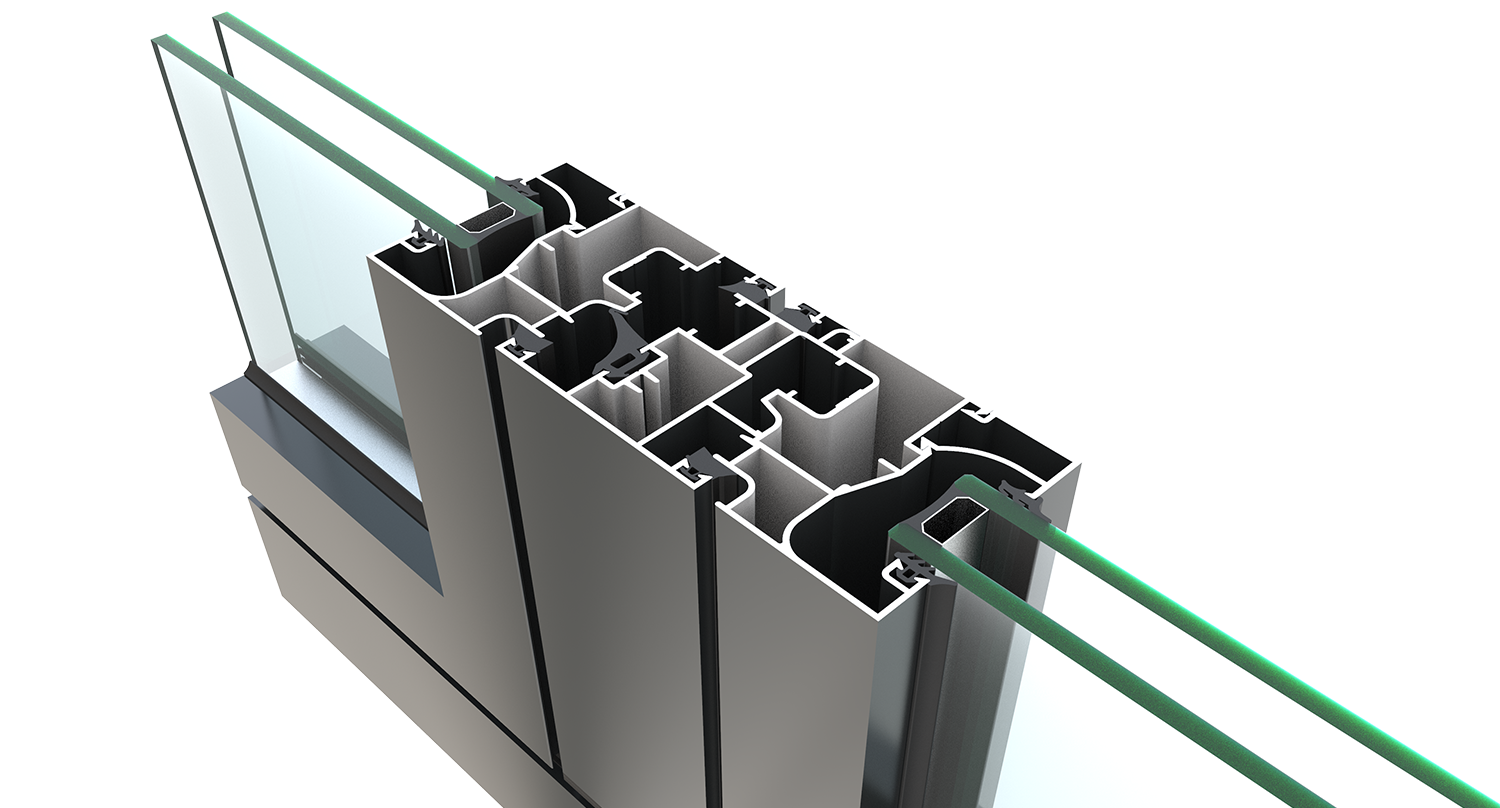

• Security Features: Safety profiles utilize a perimetric locking mechanism for enhanced security.
• Sealing Mechanism: Three rows of rubber between the frame and sash provide superior sealing.
• Glazing Options: Accommodates single glazing from 5mm and double glazing up to 37mm.
• Applications: Suitable for various opening systems including entrance doors and windows (both tilting and non-tilting).

Basic Characteristics

Construction Types

• Entrance doors
• Opening windows (tilting or fixed)
• Fixed glazing
• Mixed constructions
• Windows compatible with multi-locking mechanisms

Certifications

• QUALICOAT: Certification for the powder coating process.
• IFT Rosenheim: Certification for air permeability, water tightness, and resistance to wind load.

Technical Characteristics

• Aluminium Alloy: AIMgSi-0.5 F22
• Hardness: 12 Webster
• Minimum Coating Thickness: 75μm
• Profile Thickness: Ranges from 1.25mm to 1.35mm
• Frame Widths: Available in 50mm x 23mm and 29mm configurations.
• Glass Sash Widths: Standard dimensions include 58.5mm x 66.5mm; multi-locking mechanism dimensions are 59mm x 75.2mm.
• Maximum Sash Dimensions: For both multi-locking and basic profiles, dimensions can reach up to 1.1m x 2.6m.
• Weight Capacity: Maximum sash weight is rated at 140kg for multi-locking profiles and 60kg for basic profiles.
