ESS 47 Hybrid

Description

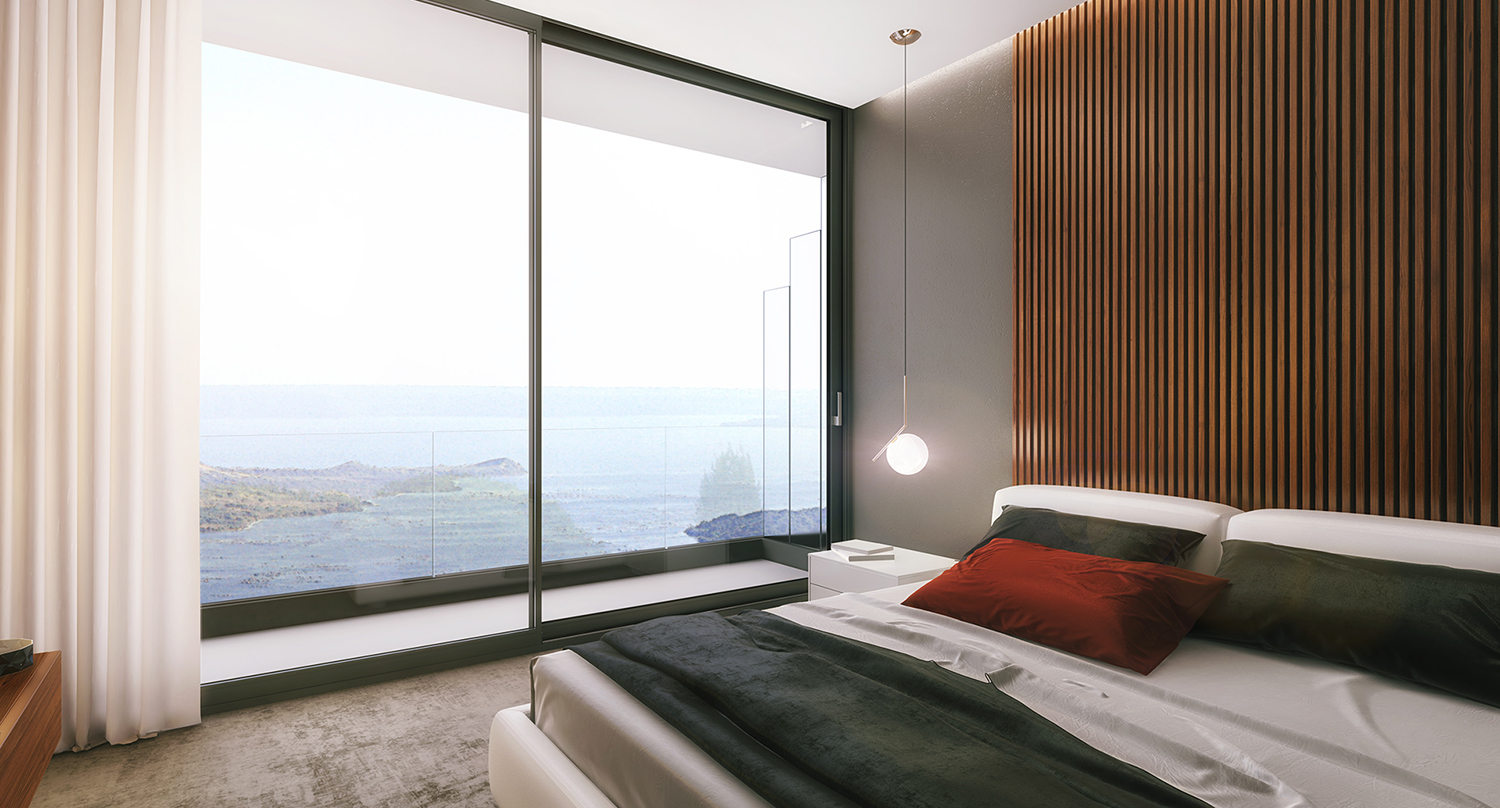

The ESS 47 Hybrid series is Europa’s new upgraded solution in sliding architectural aluminium systems. It represents a high-specification system with simple design lines, combining flawless functionality with modern aesthetics. The ability to construct a sliding system with a fixed panel (Fix & Slide) makes it ideal for hotel constructions, where this specific typology is required alongside enhanced performance coefficients.

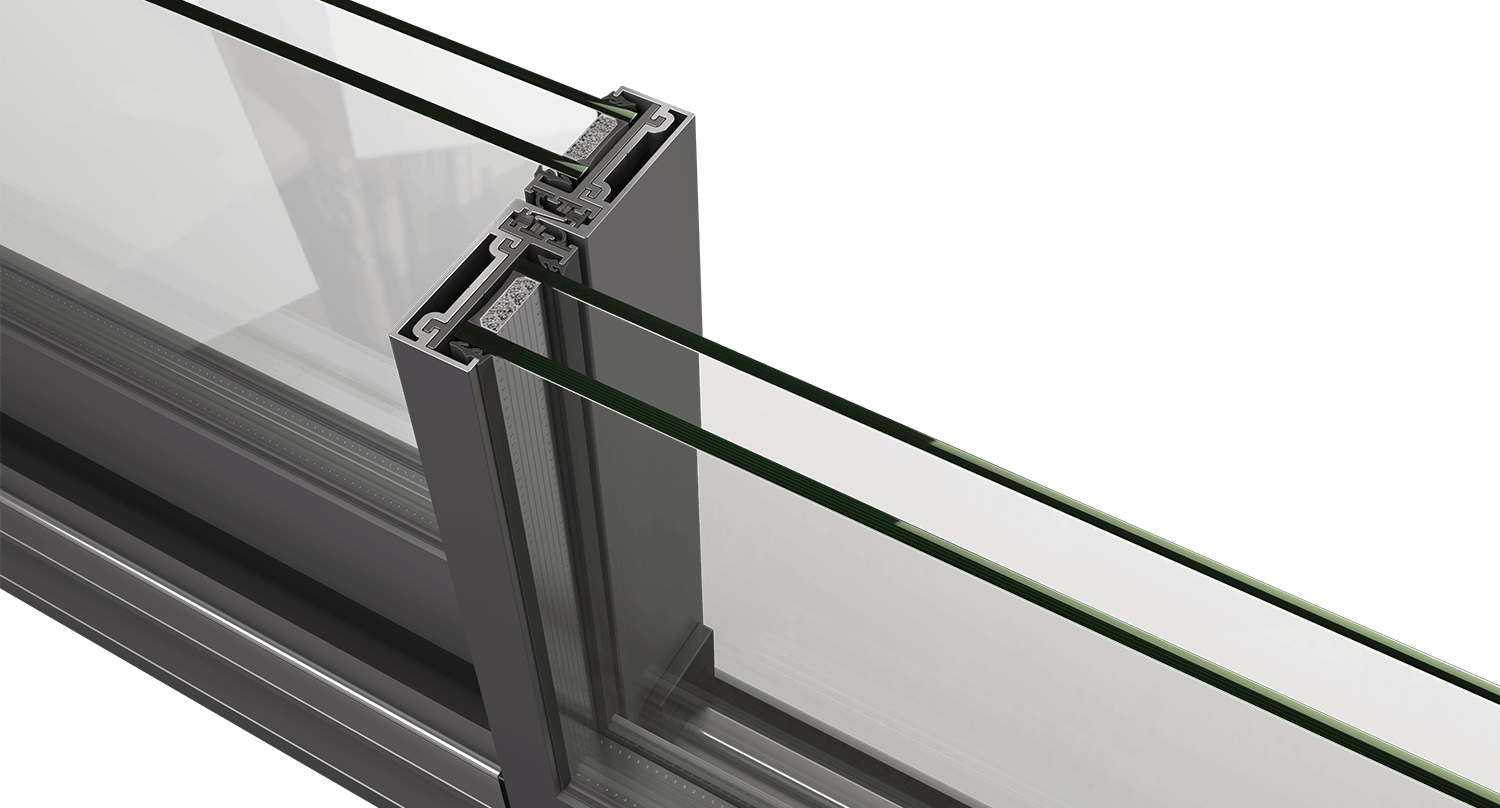

The system allows for the use of narrow profiles measuring 25mm, which provide a minimal aesthetic and greater usable opening. In this context, the system is designed to accommodate guide heights of 42mm and 34mm, as well as an option for a concealed sliding screen with a mere 25mm leaf.

The ESS 47 Hybrid is engineered to work seamlessly with the EOS 60 Hybrid, EOS 68 Hybrid, and EUROPA 8500 Thermo series for composite constructions.

KEY FEATURES

1. Use of stainless-steel lamina on the rails for smooth sliding.
2. Profile design featuring straight lines.
3. Option for installing a Lift & Slide mechanism.
4. Option for installing a multi-locking mechanism.
5. PVC rail cover for insulation and protection against water.
6. Elastic sealing blocks (EPDM) for successive and in-wall systems.
7. Capability to install double or triple glazing up to 34mm for high thermal insulation levels.
8. Use of tubular rubber gaskets (EPDM) on the sashes for absolute sealing.
9. Specially designed PVC profile addition for excellent component adaptation and insulation improvement.
10. Two levels of water drainage channels for better rail drainage.
11. Compatibility with EOS 60 Hybrid & Europa EOS 68 Hybrid for composite constructions.

CONSTRUCTION TYPOLOGIES

• Successive panels
• Concealed panels
• Successive panels with external fixed elements
• Composite constructions
• Fix & Slide

TECHNICAL SPECIFICATIONS

• Aluminum alloy: EN AW 6060 T6
• Hardness: 12 Webster
• Minimum paint thickness: 75μm
• Profile thickness:4mm
• Dimensional tolerances according to: EN 12020-02
• Width of successive rail: 120mm (two panels)
• Width of concealed rail: 134mm (glass-screen-shutter)
• Thickness of sash profile: 47mm
• Thickness of glazing: 20-34mm
• Width of polyamides: 22-24mm
• Thermal transmittance coefficient of frame: Uf from 3.02 to 6.05 W/(m²K)
• Maximum leaf dimension with lifting mechanism (WxH):5m x 2.7m
• Maximum leaf dimension with conventional mechanism (WxH):5m x 2.7m
• Maximum leaf weight with lifting mechanism: 250 Kg
• Maximum leaf weight with conventional mechanism: 100 Kg
